Poly wire ( Insulated ACSR, Insaulated AAC )

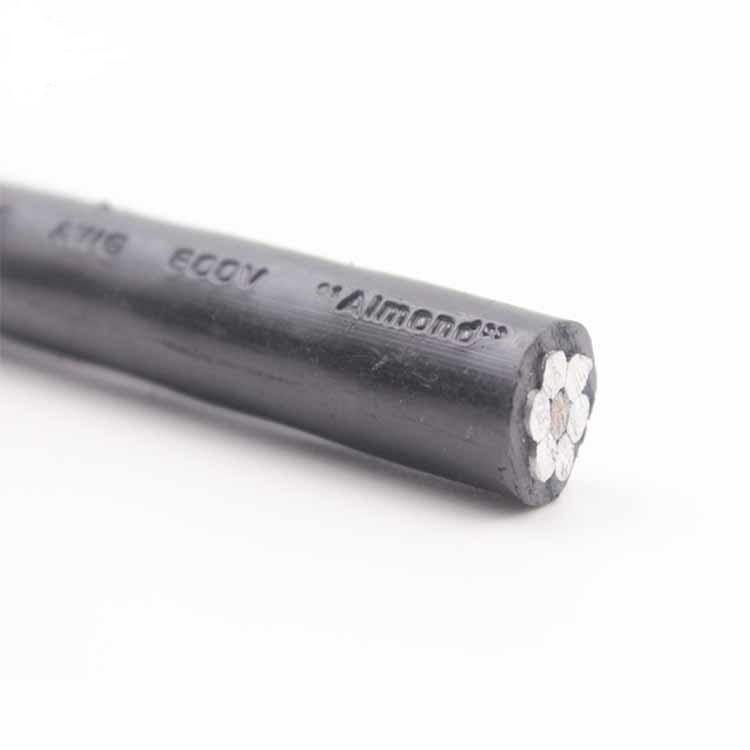

COVERED LINE WIRE-ALUMINUM CONDUCTOR

 1 Applications

 Covered Line Wire is used primarily for 600V overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.

2 Construction Conductors are aluminum alloy 1350‐H19, 6201‐T81, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HDPE) or crosslinked polyethylene (XLPE).

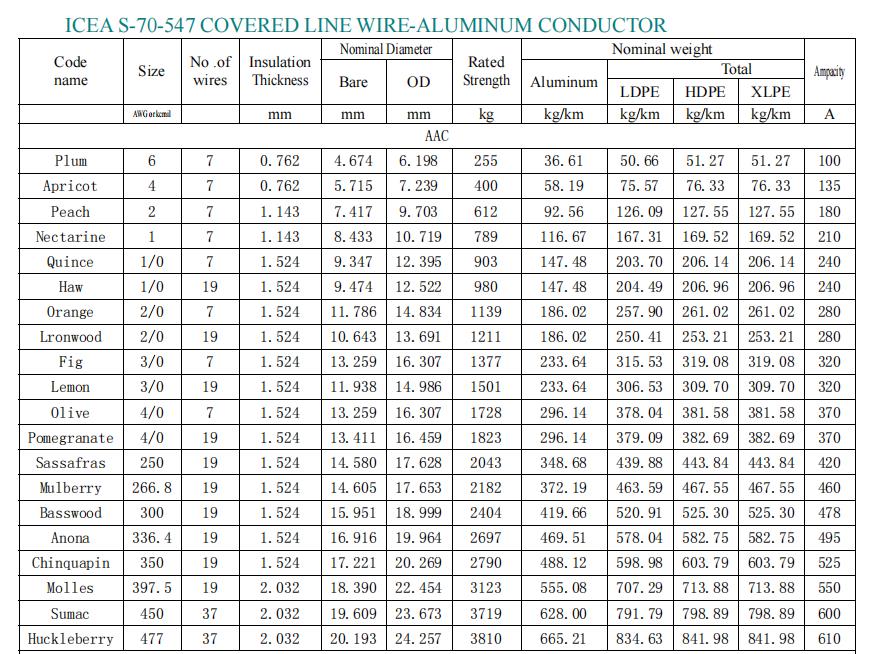

3 Standards ASTM B‐230, B‐231, B‐232 and B‐399 ICEA S‐70‐547

4 Note

The code words as given apply to conventional polyethylene line wire.

Available in 500 ft coils or long lengths on reels. The data is approximate and subject to normal manufacturing tolerances.

For 6201 aluminum conductors diameter equivalent to ACSR construction or 1350 aluminum equivalent.

 Ampacity ratings based on 75℃ conductor temperature; 25℃ ambient temperature elevation sea level;

Emissivity 0.91 coefficient of absorption 0.95; Wind speed 2ft./sec. in sun. To determine current ampacity by conductor size,

please consult The National Electric Code, latest edition.
