CAAI Cable

CABLE CAAI CAAI-S

NOMINAL VOLTAGE U0/U= 0.6/1 KV

OPERATING TEMPERATURE 90℃

STANDARD MANUFACTURING NTP 370.254

APPLICATIONS For overhead networks of secondary energy distribution low‐cost

electricity, in urban and rural areas. Whether it's on the post or on the wall cases, with appropriate attachments. They don't need to be used insulation.

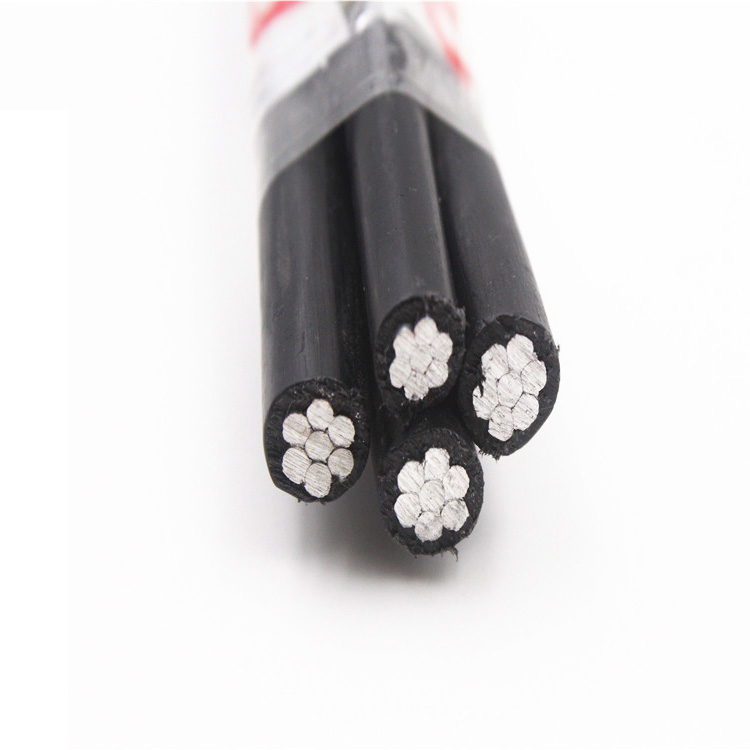

Architecture

1. Hard‐wired aluminum conductor(Class 2).

2. Weather‐resistant black cross‐linked polyethylene (XLPE) insulation, identified each phase by means of longitudinally extruded ribs.

3. Reunion, around a bearing element with high resistance to traaaion that can be made of aluminum alloy or galvanized steel. One, two or three conductors for phase, being able to carry one or two additional conductors for public lighting.

Denomination

CAAI    Aluminum conductor with aluminum alloy supporting cable (support conductor can be bare "ND" or insulated "NA")

CAAI‐S    Aluminum conductor, with galvanized steel support cable protected with XLPE.

DATA FOR ORDERING

CAAI or CAAI‐S 0.6 / 1kV,

Number of conductors and section
