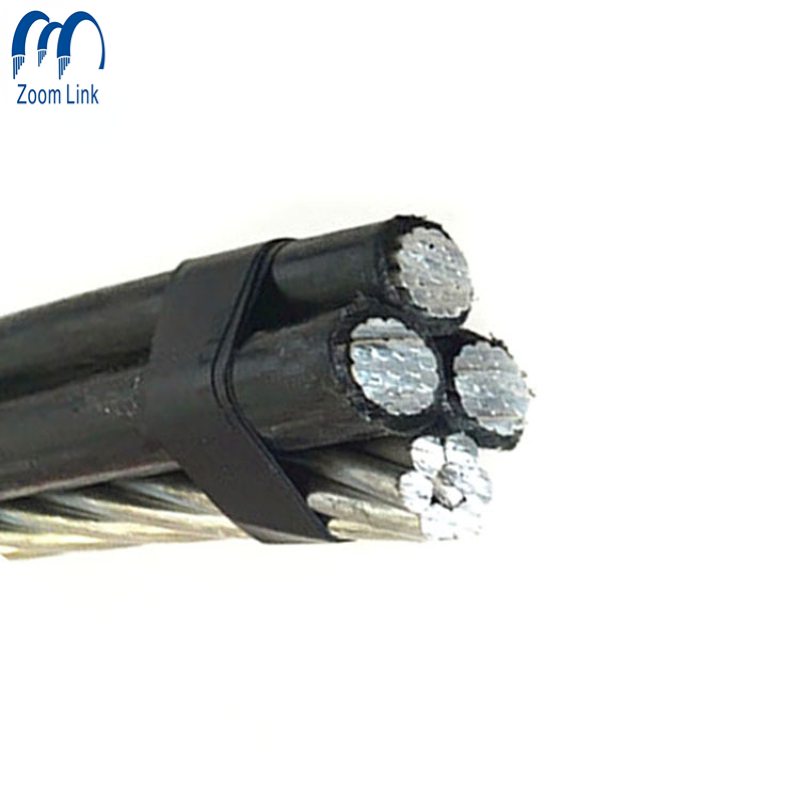

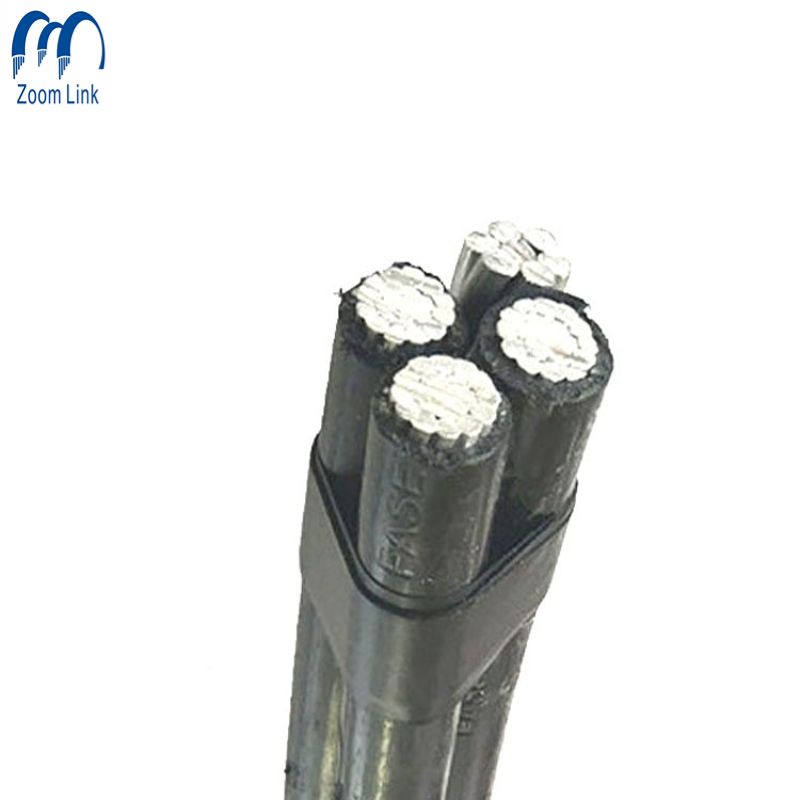

Triplex and Quadruplex Service drop wire

发布时间：2023-05-25 10:57浏览次数： times

Ⅰ Applications

Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross-linked polyethylene(XLPE) insulated conductors.

Ⅱ Service drop cable meets or exceeds the following specifications:

1、 Aluminum Wire,1350-H19 for Electrical Purposes.

2、 Aluminum Conductors, Concentric-Lay-Stranded.

3、 Aluminum conductor, Concentric-Lay-Stranded,Coated Steel Reinforced (ACSR).

4、 Concentric-Lay-Stranded 6201 –T81 Conductors

5、 Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Code Word	AWG or Kcmil	Neutral ACSR	Phase AAC
Paludina	26 AWG+16AWG	6+1 /1.68	1/4.11
Voluta	26 AWG+16AWG	6+1 /1.68	7/1.56
Whelk	24 AWG+14AWG	6+1 /2.12	1/5.19
Periwinkle	24 AWG+14AWG	6+1 /2.12	7/1.96
Conch	22 AWG+12AWG	6+1 /2.67	7/2.47
Neritina	21/0 AWG+11/0 AWG	6+1 /3.37	7/3.12
Cenia	21/0 AWG+11/0 AWG	6+1 /3.37	19/1.89
