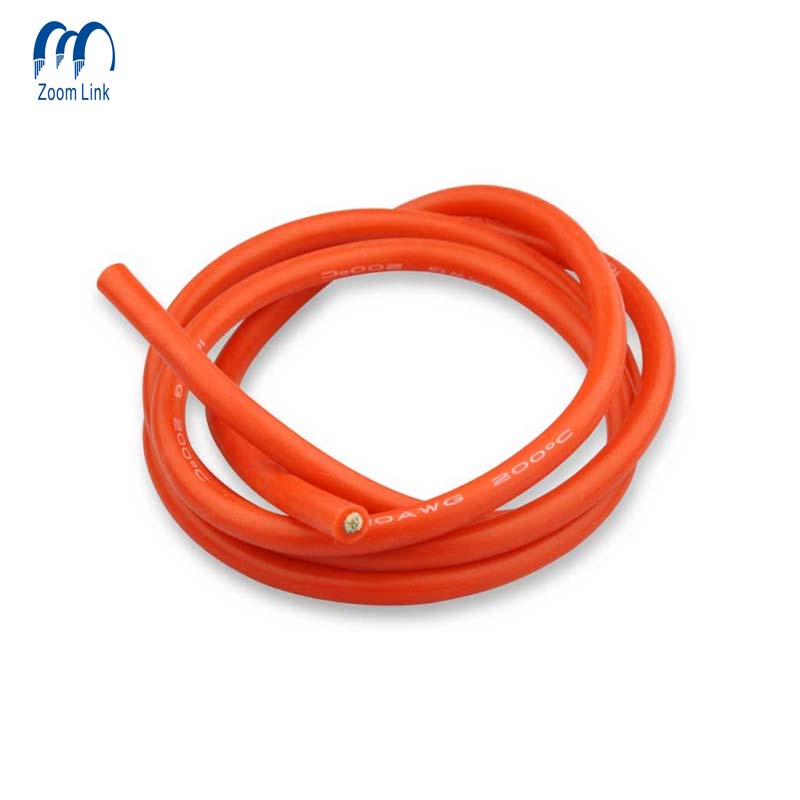

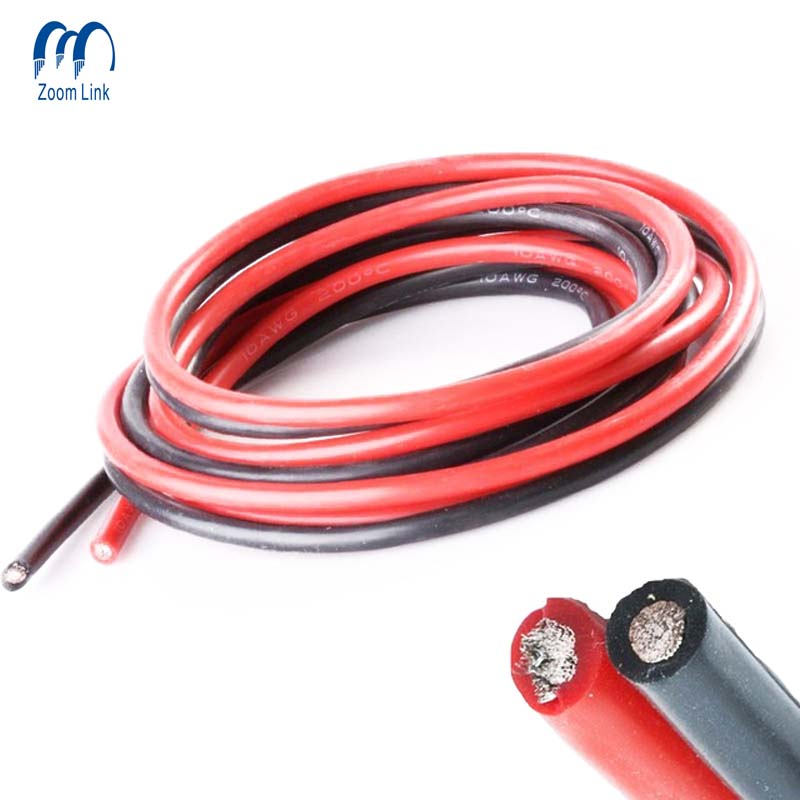

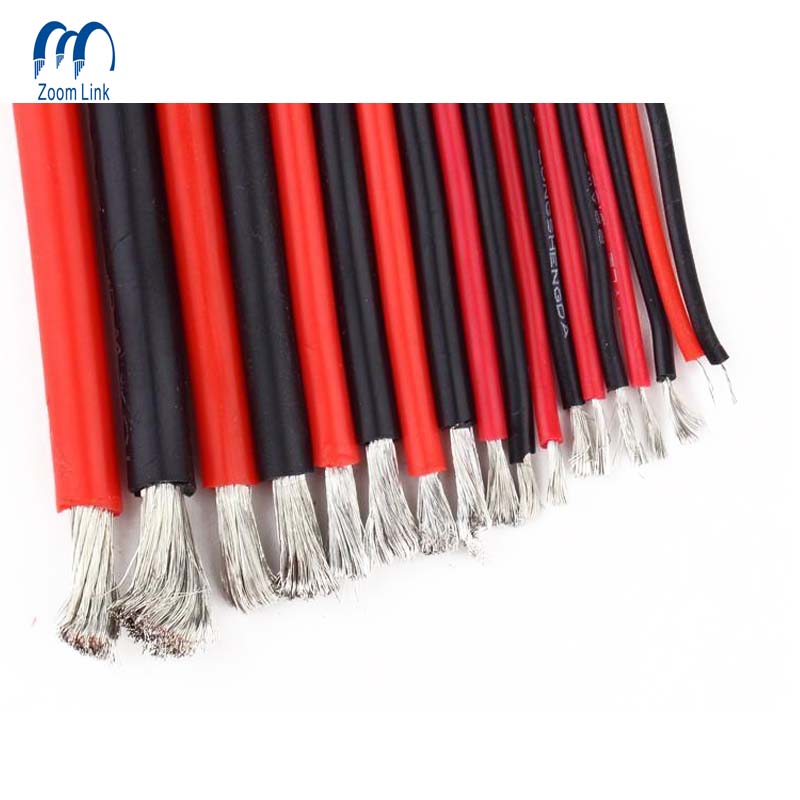

FEP/PFA/ETFE/PTFE customizable electronic wire high temperature wire cable

Application

This product can keep a good physical and mechanical properties and electrical properties when temperature at 200℃ or bellow. It has good performance of solvent resistance、corrosion resistance、high temperature resistance.It is suitable for in bad conditions such as high temperature,for loop of distribution network、industrial device control loop and signal transmission for rated voltage 200℃ and bellow.

Operating characteristics

1、Rated voltage: up to and including 0.6/1kV

2、Permissible Max.continuous operating temperature of conductor:silicon rubber insulated 180℃，fluoroplastic insulated200℃

3、Ambient temperature of installation not less than 0℃

4、The allowable bending radius:not less than 12 times of cable diameter for non-armored cable or screened flexible cable.not less than 15 times of cable diameter for armored cable or copper tape screened cable.

Main technical characteristic of cable

1、The D.C resistance at 20℃ of conductor should conform to GB/T 3956.

2、The cable should withstand 300V voltage test for 5 minutes.

3、The fire-retardant and fire-resistant cable should be made firing tests regulated in GB/T 19666

Specification

Note: This cable is a special customized model, which can be designed and produced according to the user's requirement.
