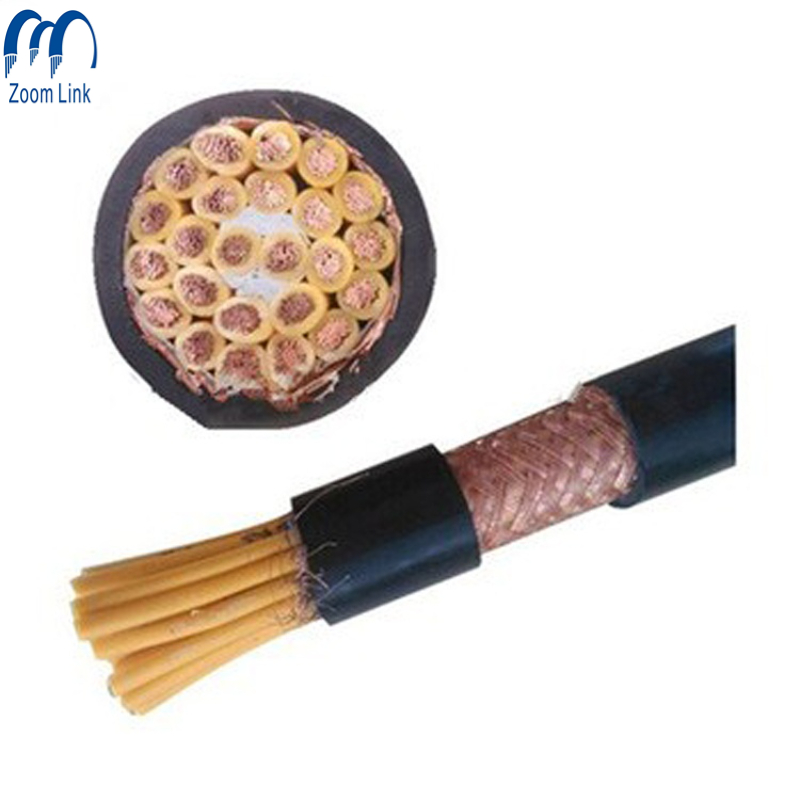

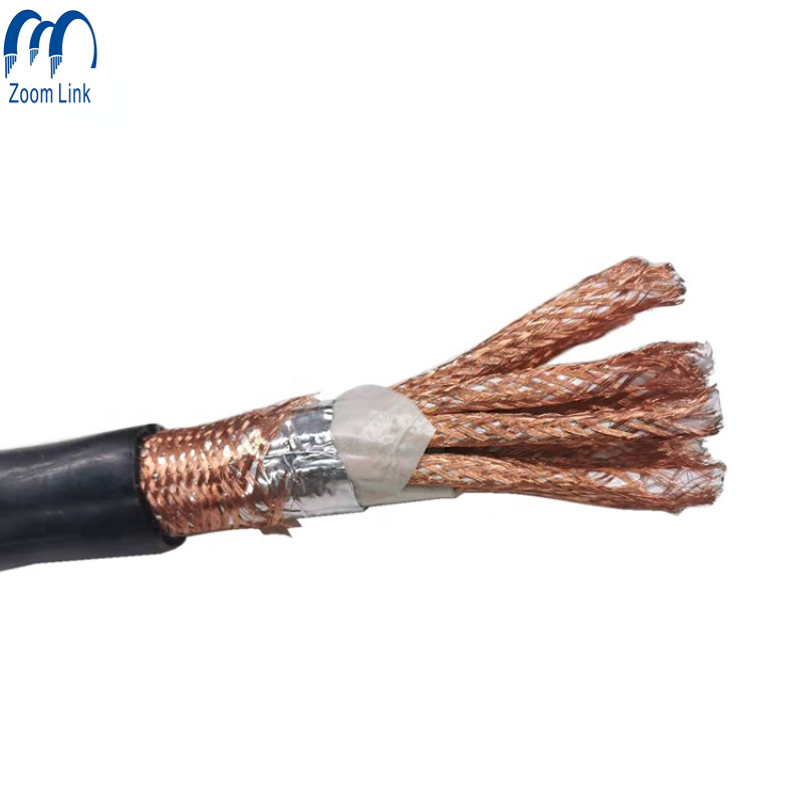

Control cable and Instrumentation Cable

Reference Standard

 The product is manufactured according to the standards of TICW 6-2009 of China

Supervision Test Center for Product Quality of Cables and Cords and JB/T 13486-2018 IEC, BS and enter-prise standards.

 Application.

This product applies for connecting wire of electric appliance, apparatus or computer, used in distribution equipment with rated with rated voltage up to and including A.c.300/500V or D.C.1000V.

Operating characteristic

More than 80% of relative humidity in fixed installation or mobile use, cable core temperature than: fluorine plastic insulation 200℃, silicone rubber insulating 180℃，90℃cross linking together, other polyethylene insulation insulation 70℃, in use process cable.should prevent heat radiation or contact directly.

The temperature for installation shall not be below 0℃.

Permissible bending radius :not less than 6 times of overall diameter for unarmored cable not less than 12 time of overall diameter for armored or screened cable ; not less than 6 times of overall diameter for screened flexible cable.

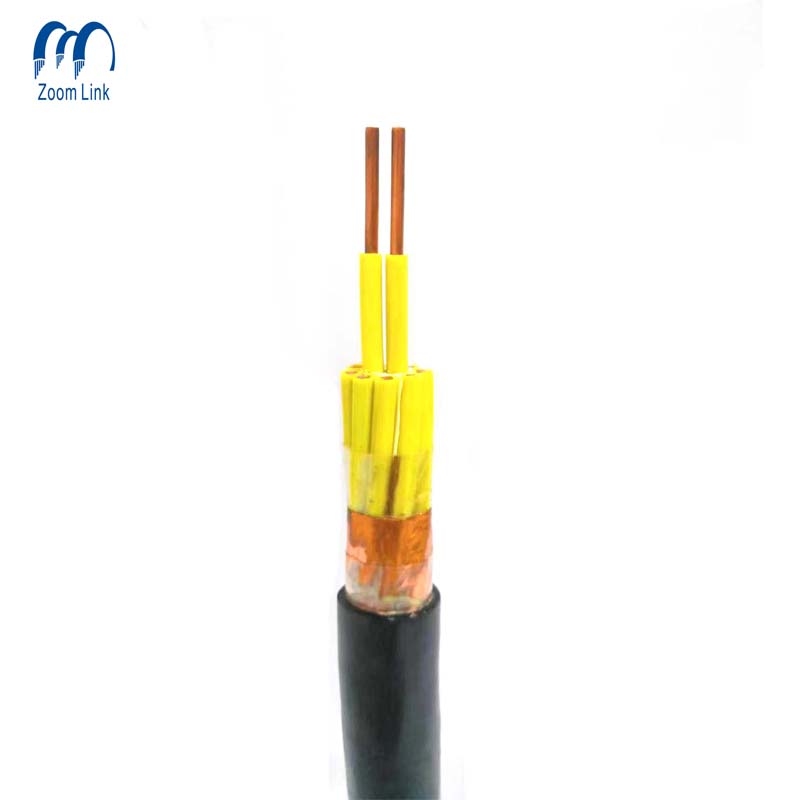

Copper conductor insulated PVC sheathed Instrument cable
