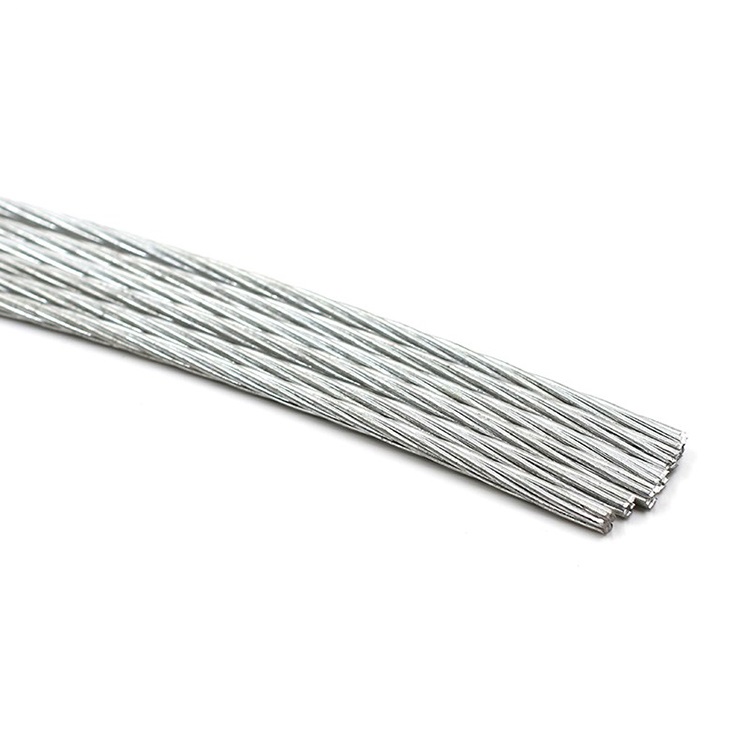

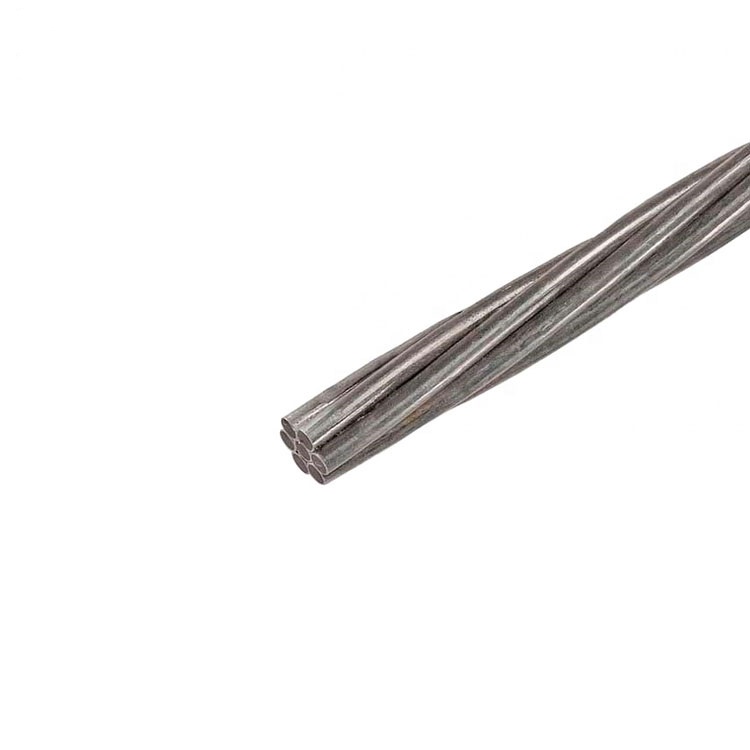

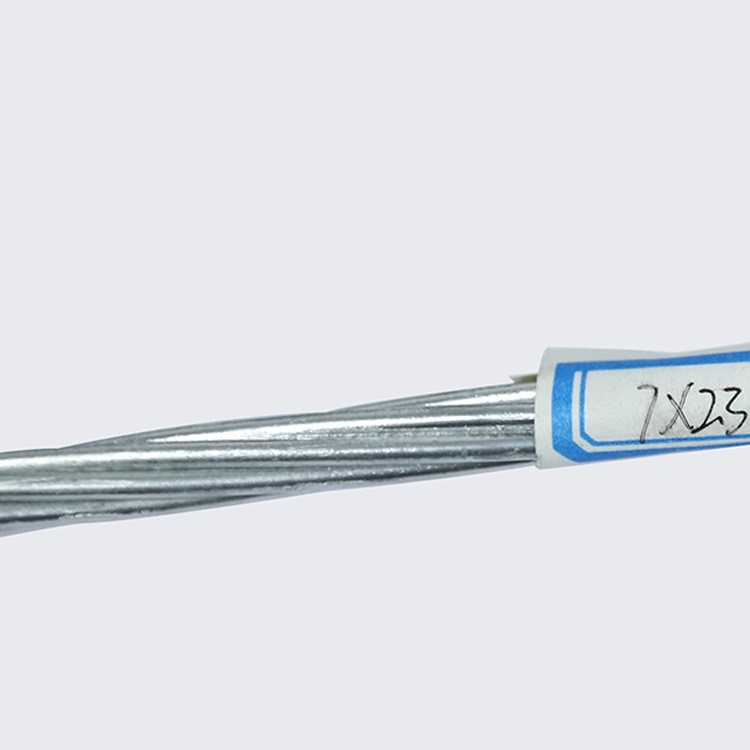

Stay wire, Guy wire, GSW

发布时间:2023-03-15 15:12浏览次数: times
  • Stay wire, Guy wire, GSW
  • Stay wire, Guy wire, GSW
  • Stay wire, Guy wire, GSW
  • Stay wire, Guy wire, GSW

 Applications

The product Galvanized steel wire (GSW) is used for the cord of ACSR( Aluminum Conductor Steel Reinforced) ,Stay wire. Being the leading enterprise of this industry ,the GSW manufactured by Sanhe cable has excellent mechanical property, best quality of coating and nice condition of surface.

 Standards

We could produce the cable according to many standards:ASTM A 475, ASTM B 498 ,BS ,IEC,DIN,and so on.

Zinc Wight  Class A and Class B steel wire can be supply.

Number of wires

Inch

diameter (mm)

EHS Grade (kN)

Approx weight (kg/km)

7/2.03

1/4

6.35

29.58

181

7/2.64

5/16

7.94

49.82

305

7/3.05

3/8

9.52

68.503

407

7/3.68

7/16

11.11

92.523

594

7/4.19

1/2

12.7

119.657

768

19/3.18

5/8

15.88

178.819

1184


*
*
*
